Y O S H I M A S A

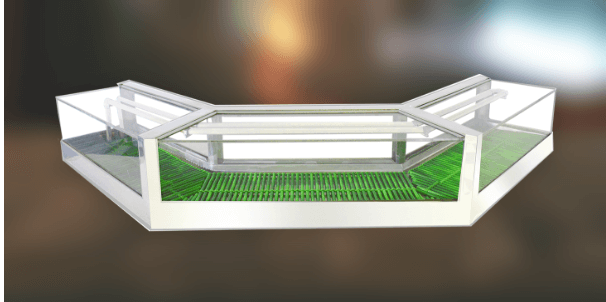

Frameless Diamond Shaped Sushi Case

REQUEST A QUOTE

DESIGN FEATURES

  • Rectangular Profile – easy integration with sushi bar
  • Mirror-polished Stainless Steel Body – elegant and fashionable look
  • Flat Top – can be used as a surface for working or displaying
  • Tempered Glass Sides – Better exhibition
  • 1” Deep Pan Floor – convenient for food storage
  • 2 Upper & 4 Bottom Evaporators – provides better cooling
  • Large Water Drain – 1” diameter for easier and faster cleaning
  • Heavy-duty Clear Plexiglass Doors – safer operation
  • 90 Day Limited Warranty
  • NSF Certified
  • Bamboo Floor Mat Included
  • External condensing units are available for purchase
    ^Click here for more information
  • AEV regulator is available for purchase
  • FREE CONSULTATIONS FOR CUSTOM-SIZE

OPERATION NOTES

  • Please No Overnight Storage
  • Do Not Use a Pressure Washer to Clean
  • Maintain Ambient Temperature 68-77°F

OPTION

  • LED Interior Light
  • Adjustable Stainless Steel Legs
  • Condensation Free Glass
  • Any Exterior Colors Available

Description

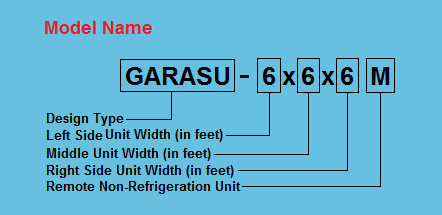

GARASU Diamond Shaped UNIT – SPECIFICATIONS

MODEL DIMENSIONS WEIGHT MATERIALS BACKDOORS AUTOCAD PDF
GARASU-2 x2 x2M 3 x 24″W x 12″D x 10″H 78 lbs 304 Mirror Stainless Steel
Stainless Steel Evaporator
Plexiglass
Polyurethane Foam
6 pcs GARASU-2 x2 x2M GARASU-2 x2 x2M
GARASU-3 x3 x3M 3 x 36″W x 12″D x 10″H 101 lbs 6 pcs GARASU-3 x3 x3M GARASU-3 x3 x3M
GARASU-4 x4 x4M 3 x 48″W x 12″D x 10″H 128 lbs 6 pcs GARASU-4 x4 x4M GARASU-4 x4 x4M
GARASU-5 x5 x5M 3 x 60″W x 12″D x 10″H 154 lbs 12 pcs GARASU-5 x5 x5M  GARASU-5 x5 x5M
GARASU-6 x6 x6M 3 x 72″W x 12″D x 10″H 180 lbs 12 pcs GARASU-6 x6 x6M  GARASU-6 x6 x6M
GARASU-# x# x#CM CUSTOM SIZE, REMOTE  –
Each NEW unit comes with following Accessories:
Stainless Steel Mat – 1 set    Vinyl Hose w/ Clamp – 1 pcs Thermometer – 1 ea   Water Plug – 1 ea  Drain Cap – 1 ea

† Exterior Dimensions ‡ Net Weight
* YOSHIMASA reserves the rights to change specifications without prior notice.

Click Here For ->  Spec Sheet
